HEIDENHAIN Handwheel Case Repairs
Repaired HEIDENHAIN HR 410 handwheel Casing
EEC Ltd were contacted by a long-standing customer requiring a HEIDENHAIN handwheel case repair. The customer reported that the casing of their HEIDENHAIN HR 410 handwheel had started to break apart, and was being held together with tape. Worn out casings are a common issue on the HR 410 handwheels due to the strength of the holder magnets and the tendency of the operator to remove them from the machine by grabbing the cable/connector at the bottom of the unit. Recasing HEIDENHAIN handwheels is a far more cost effective repair then replacing the newer ID numbered units with the HR 510 replacement. For the cost of the re-case kit and a couple of hours of labour, the customer receives a good-as-new handwheel unit for a fraction of the cost of a refurbished HR 510 unit. EEC engineers will always offer the best, and most cost effective solution to any problem.

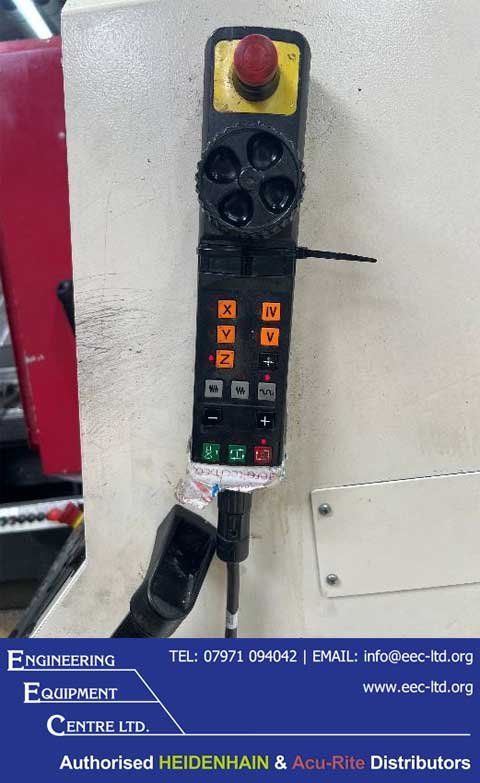

Customers HR 410 handwheel with tape holding the broken bottom connector housing together.

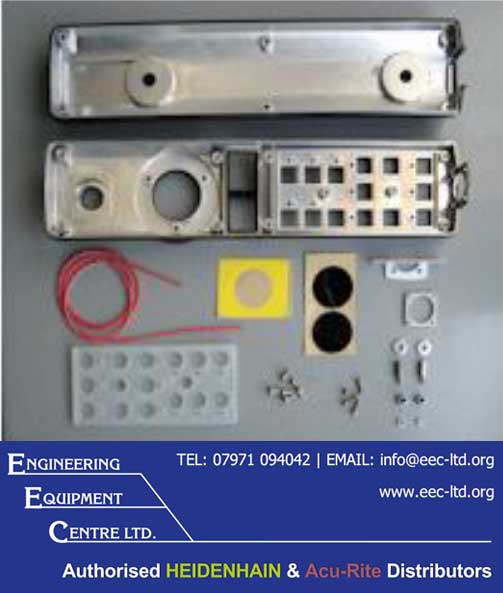

What’s included with the HR 410 housing & case re-build kit. Including New cases, emergency stop sticker surround, behind button keyboard membrane, seal and all fixings.

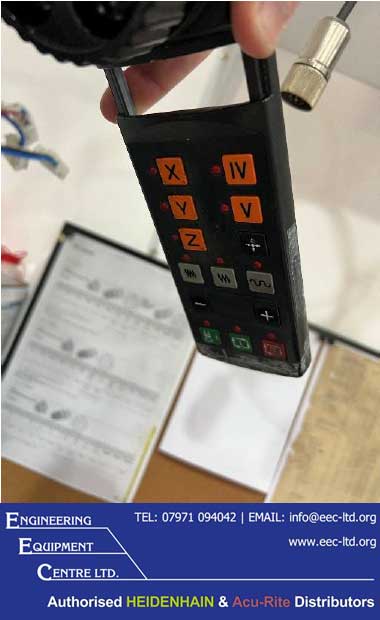

Layout of the customers buttons to ensure correct reassembly of handwheel during repair.

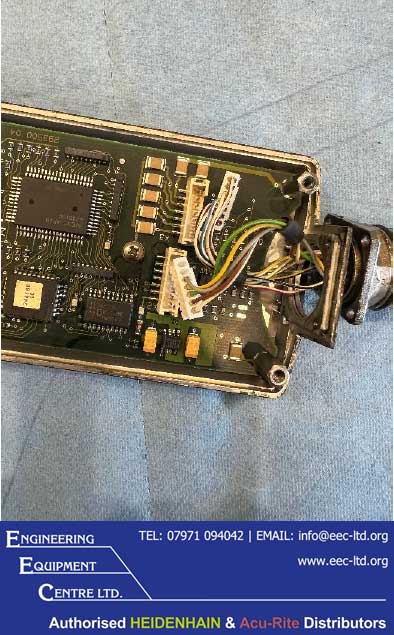

Reference photo of HR 410 where the connections are made into the main PCB board. Also showing where these units tend to break near the bottom connection.

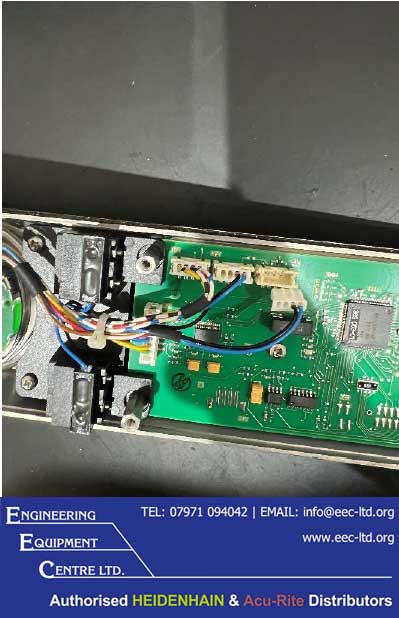

Another reference photo of the connections from the emergency stop button, the handwheel encoder and both of the permissive buttons into the main PCB board of the HR 410

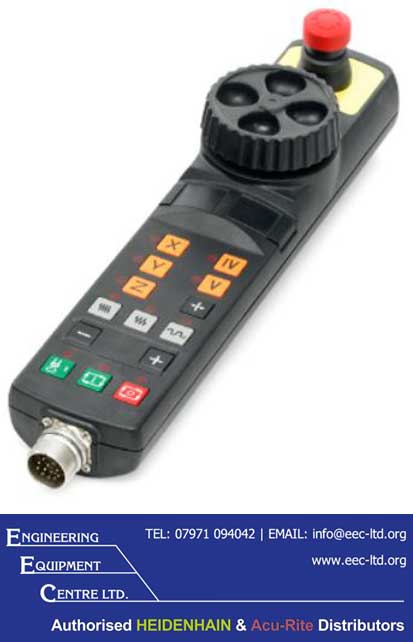

The complete repaired hand wheel unit, cleaned and rebuilt, looking like a brand new unit.
The HEIDENHAIN HR 410 portable electronic handwheel with Keys for the selection of 5 axes, was offered with and without detent and was superseded by the HR 510 handwheel and adapter cable. Please contact EEC for further information on new and refurbished HR 510 Handwheels.
Product Info: The HEIDENHAIN HR 410 portable electronic handwheel has the following features:
- Two permissive buttons (24 Vac)
- EMERGENCY STOP key (24 Vac)
- Magnetic holding pads
- Exchangeable key symbols, factory-fitted as follows:
- Keys for the selection of 5 axes
- Traverse direction keys
- Three preset feed rate keys
- Actual-position-capture key
- Keys for spindle On, NC Start and NC Stop
