23rd November 2023 / Last updated : 23rd November 2023 Neal Masters Acu-Rite G2 Control

Obsolete Acu-Rite Millpwr 2 Control & Scales

Replaced With New Acu-Rite G2 Control With 0.001mm Resolution Scales

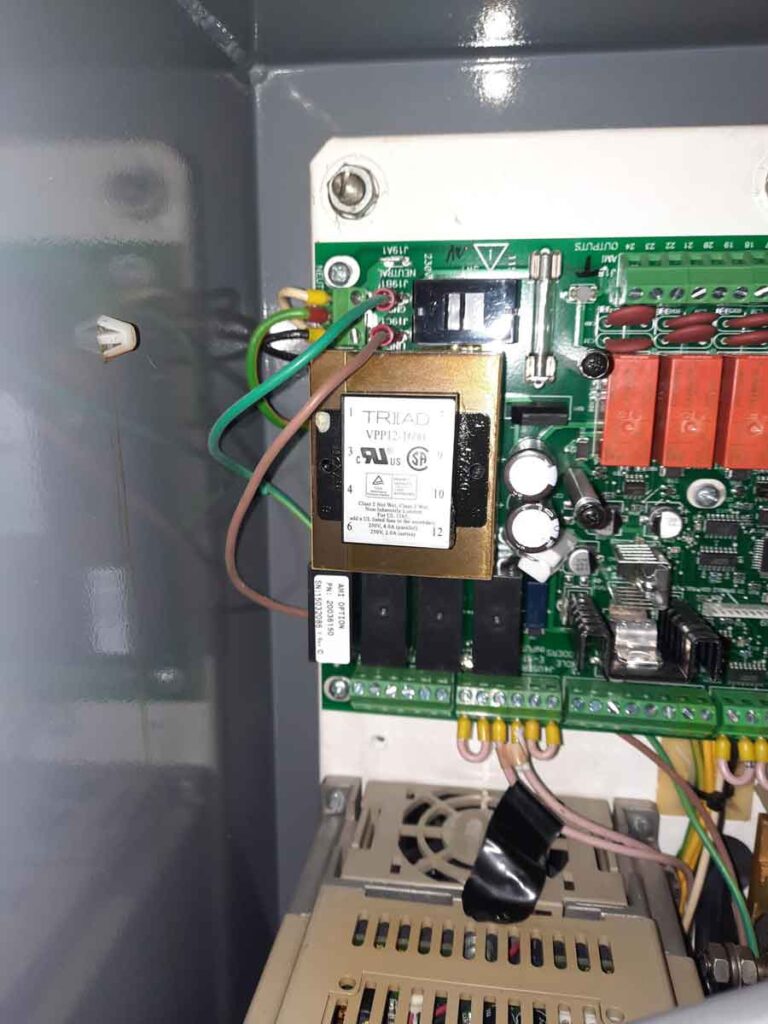

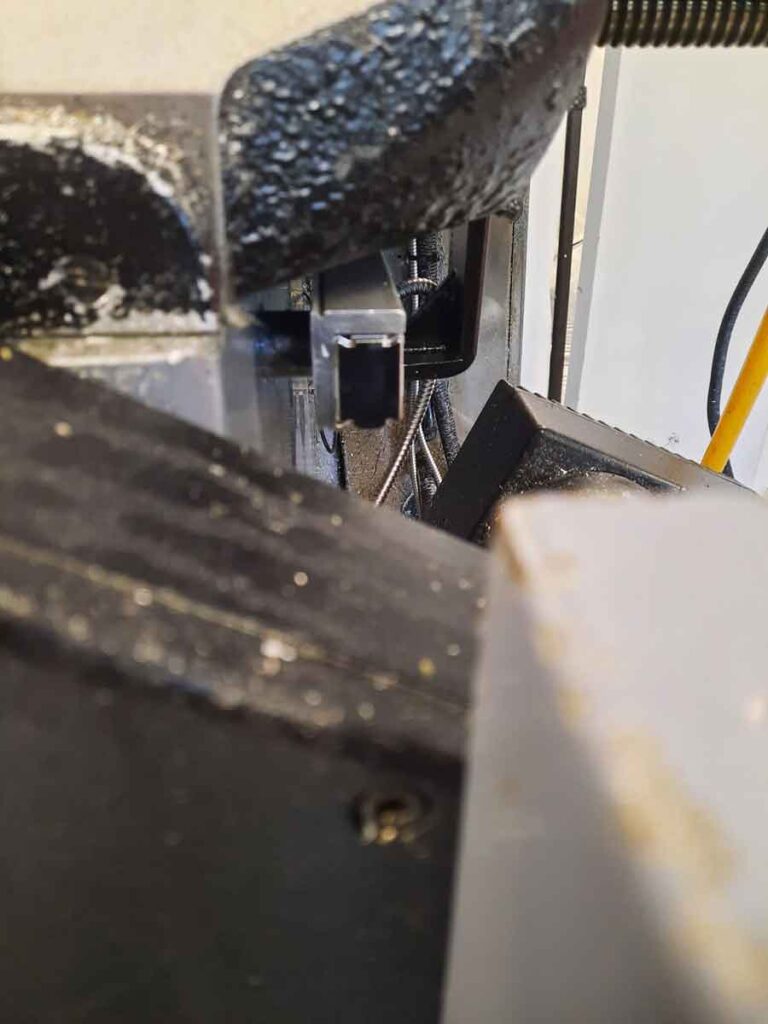

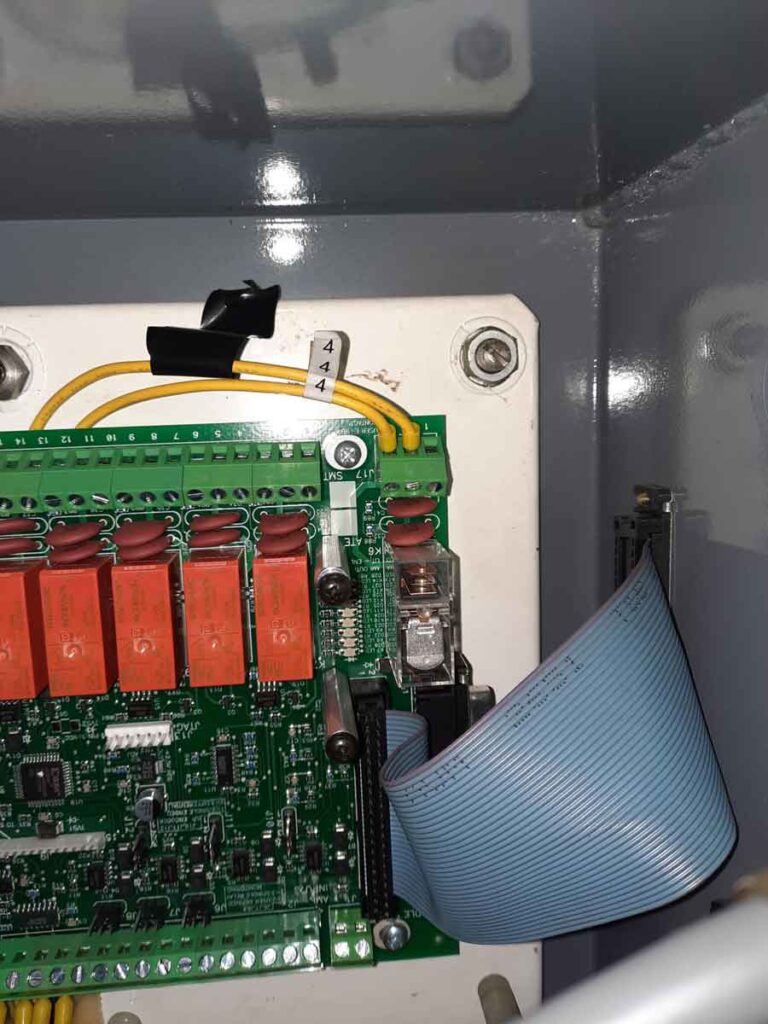

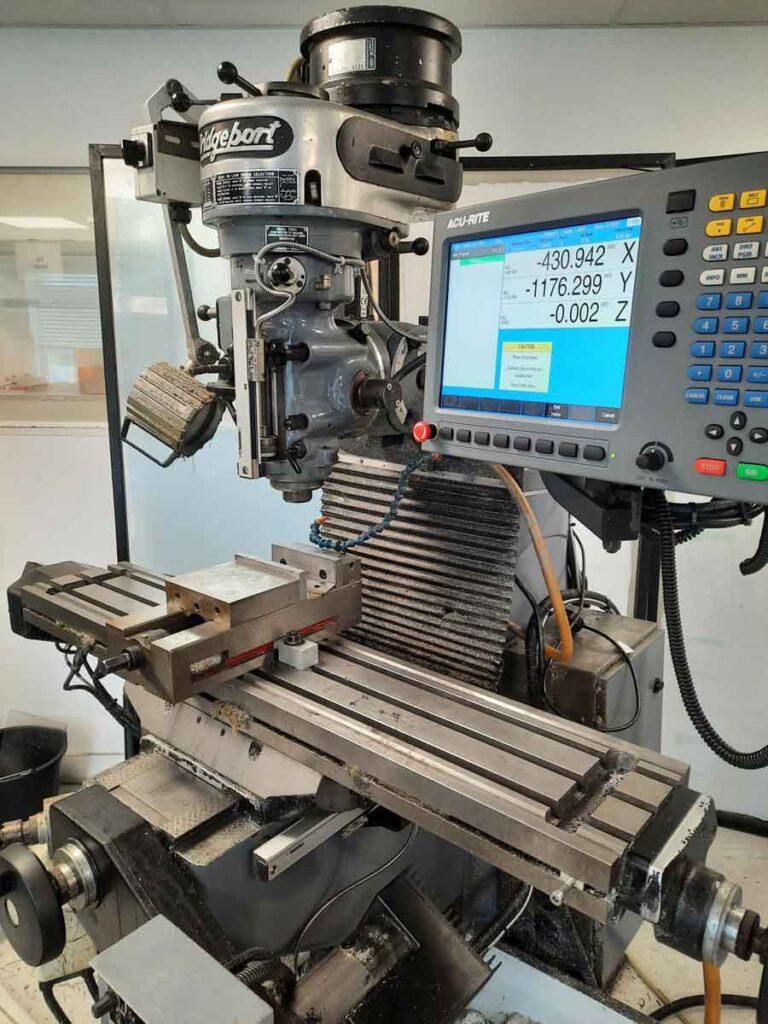

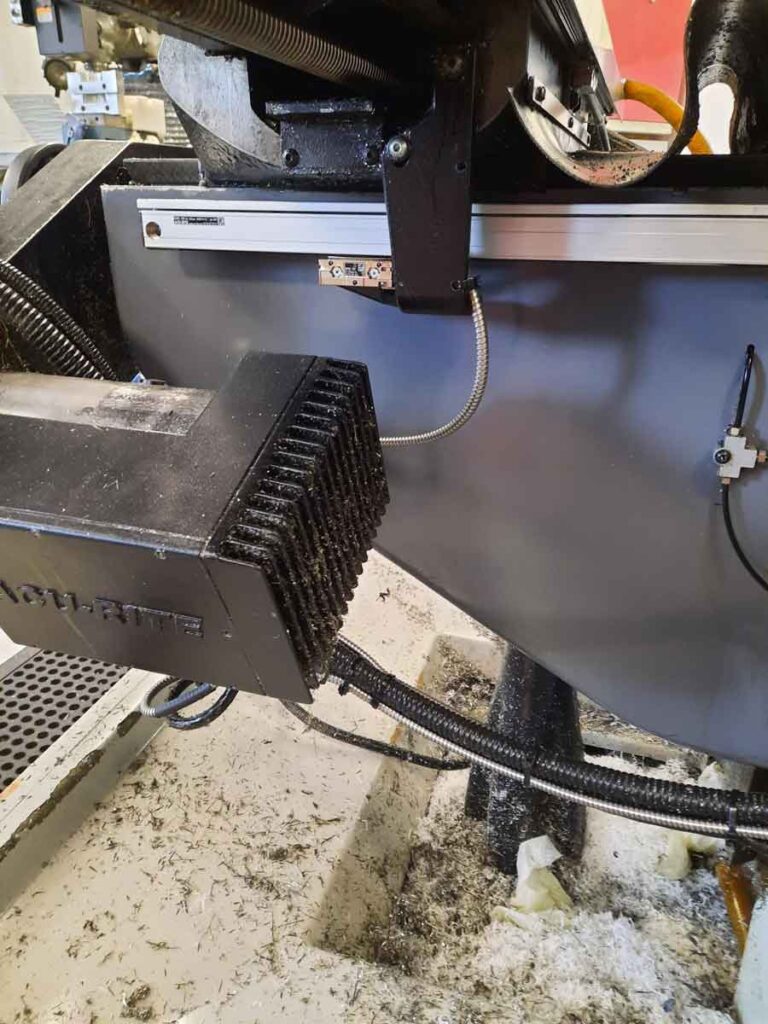

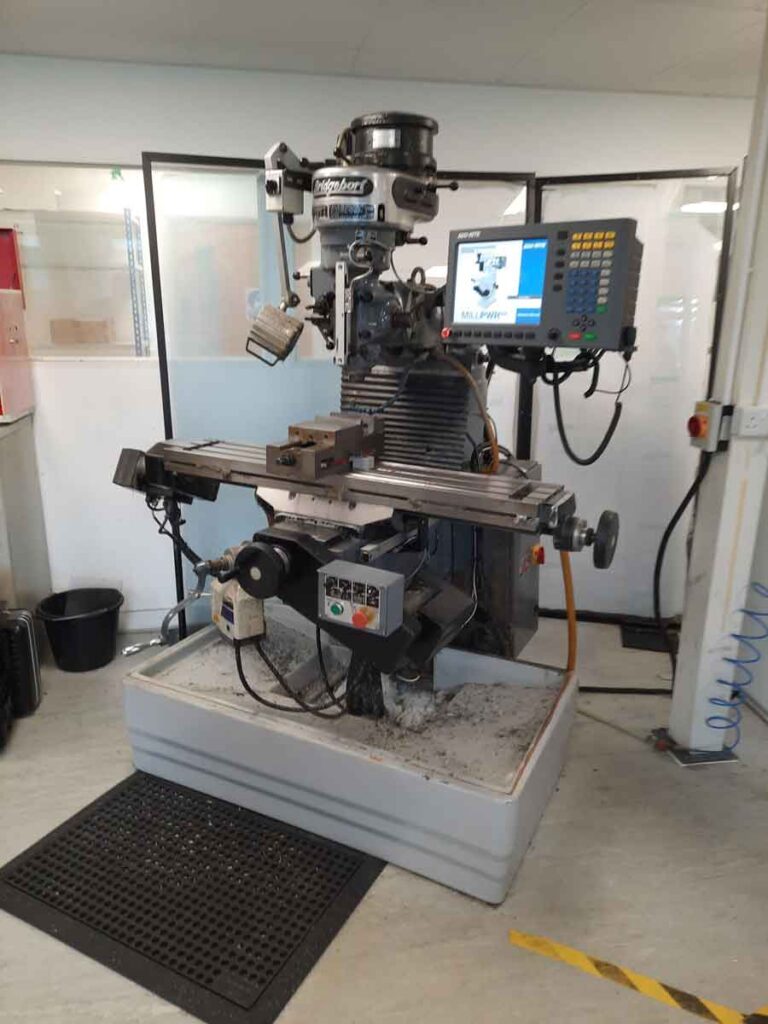

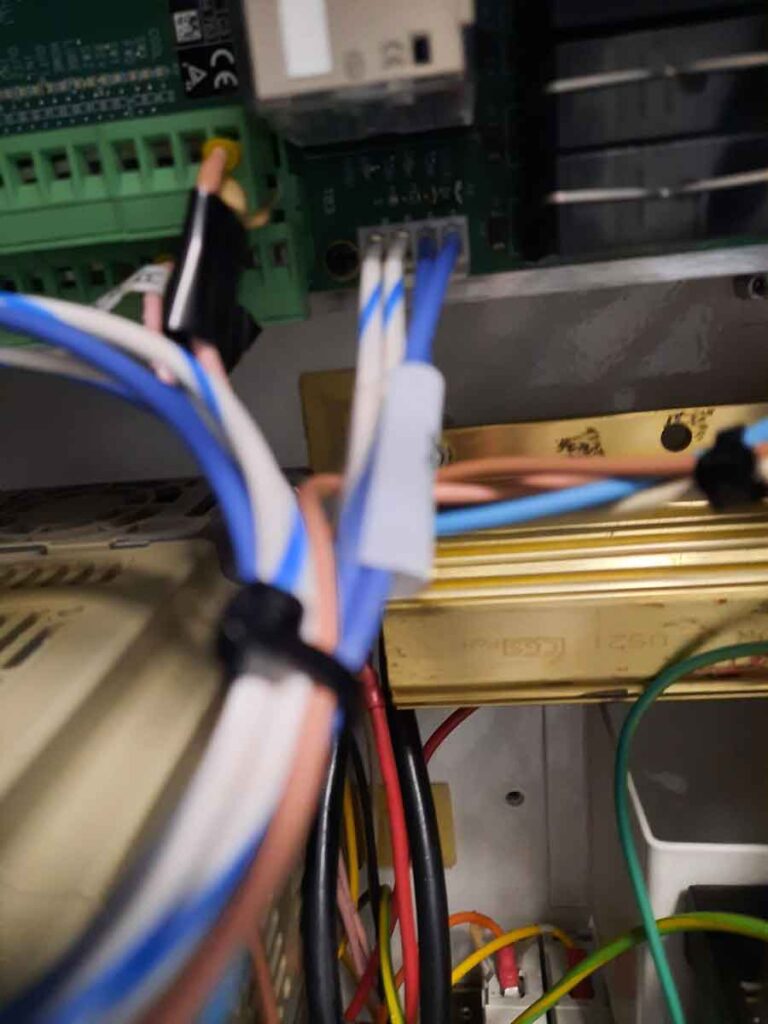

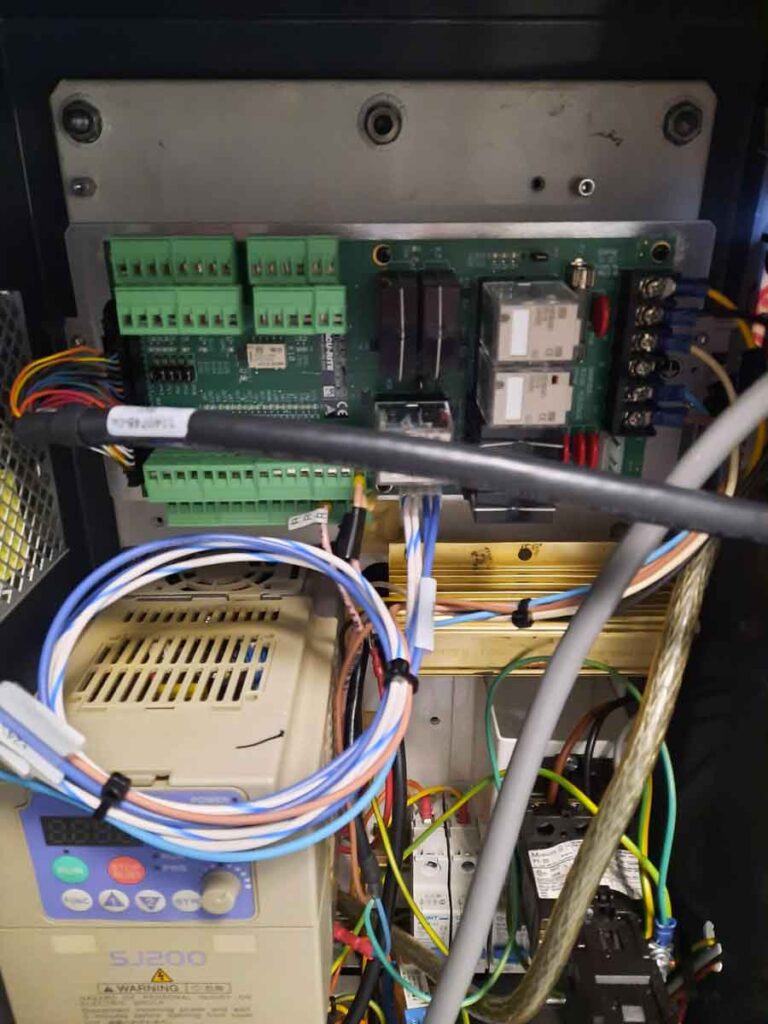

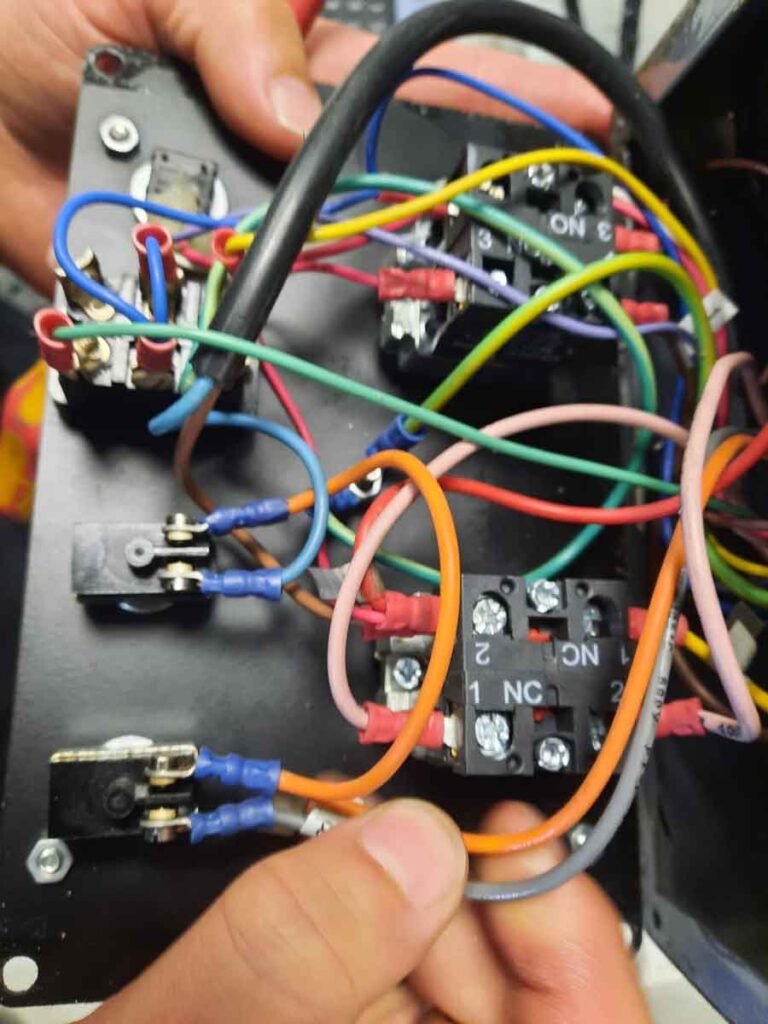

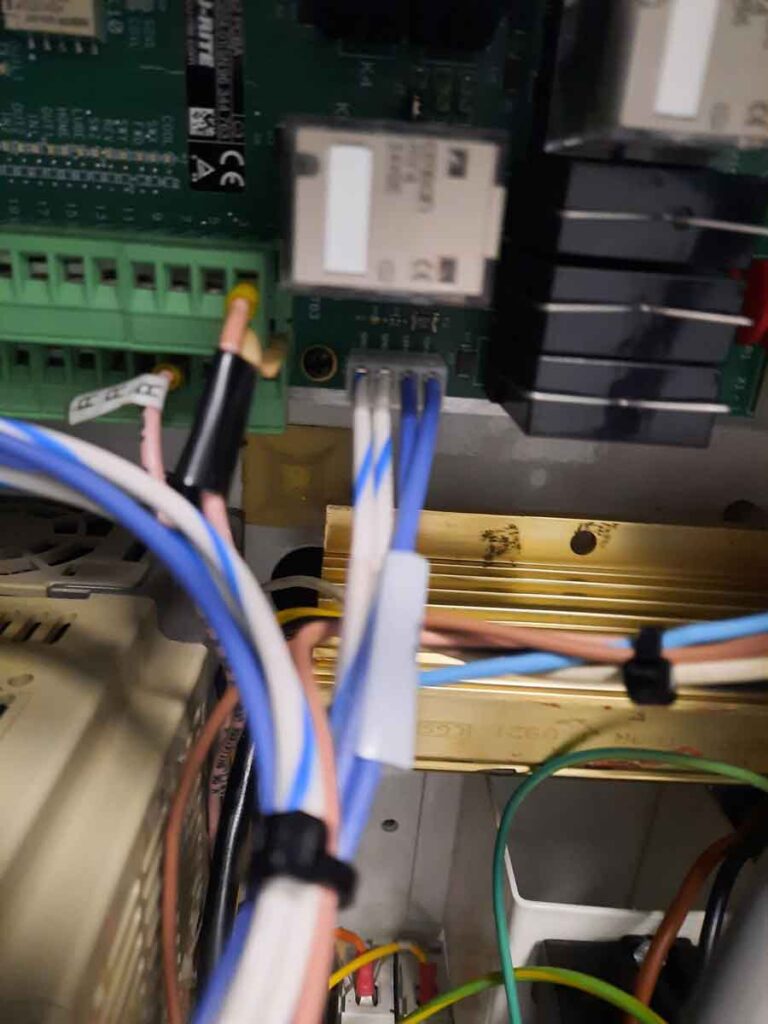

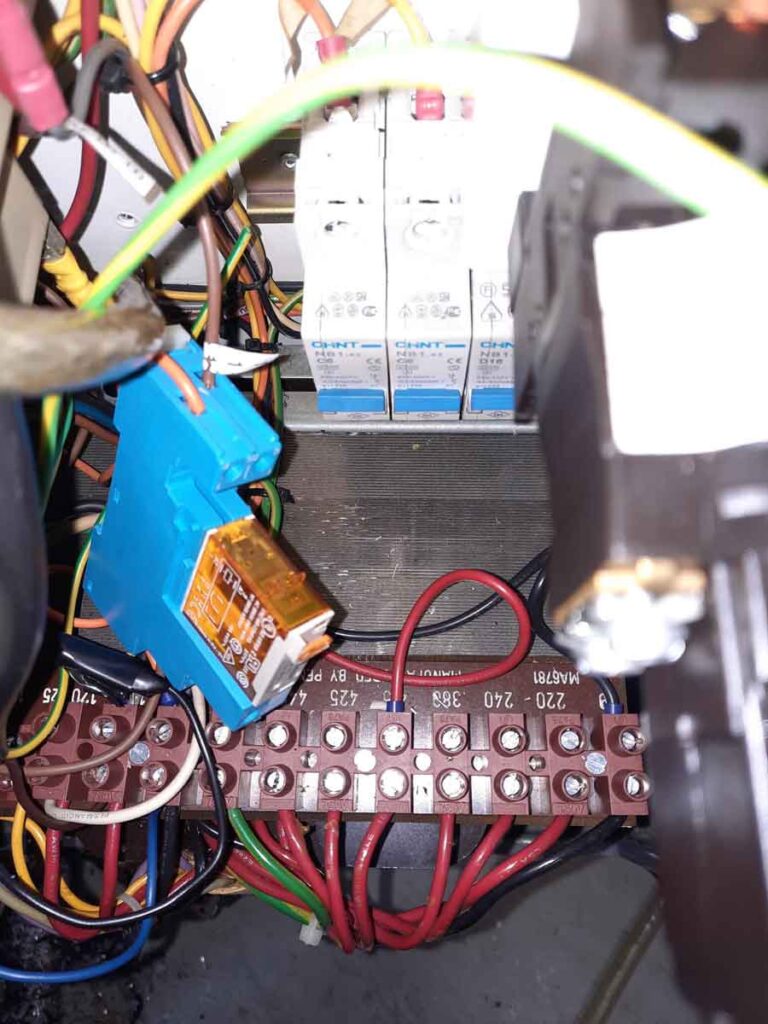

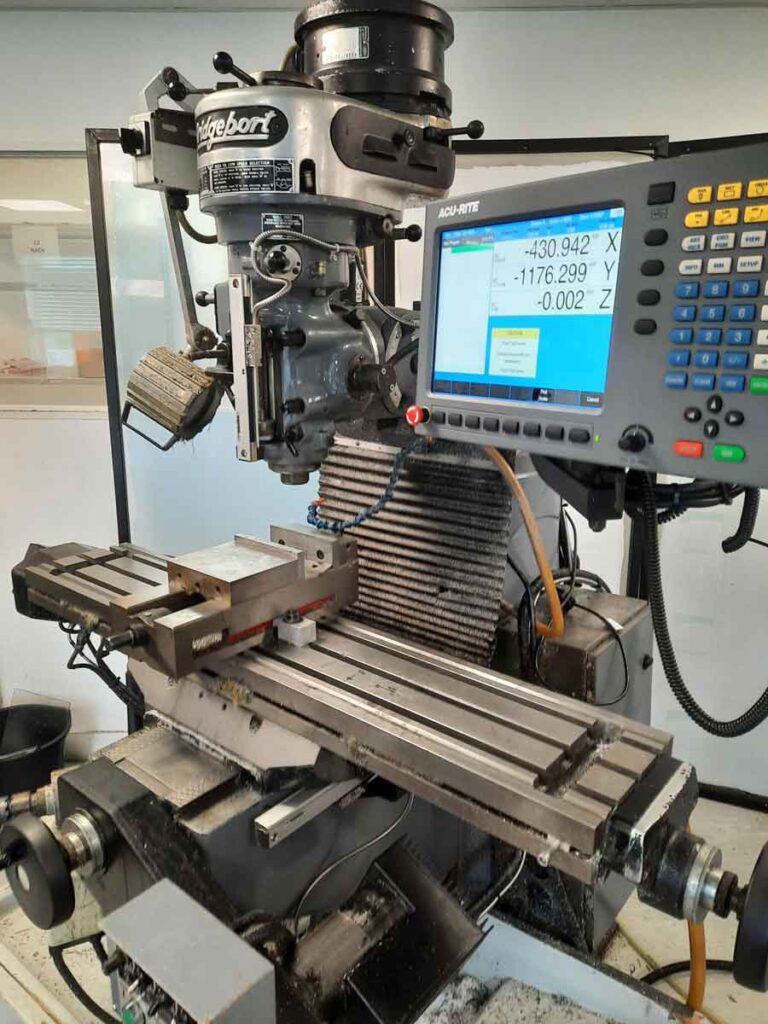

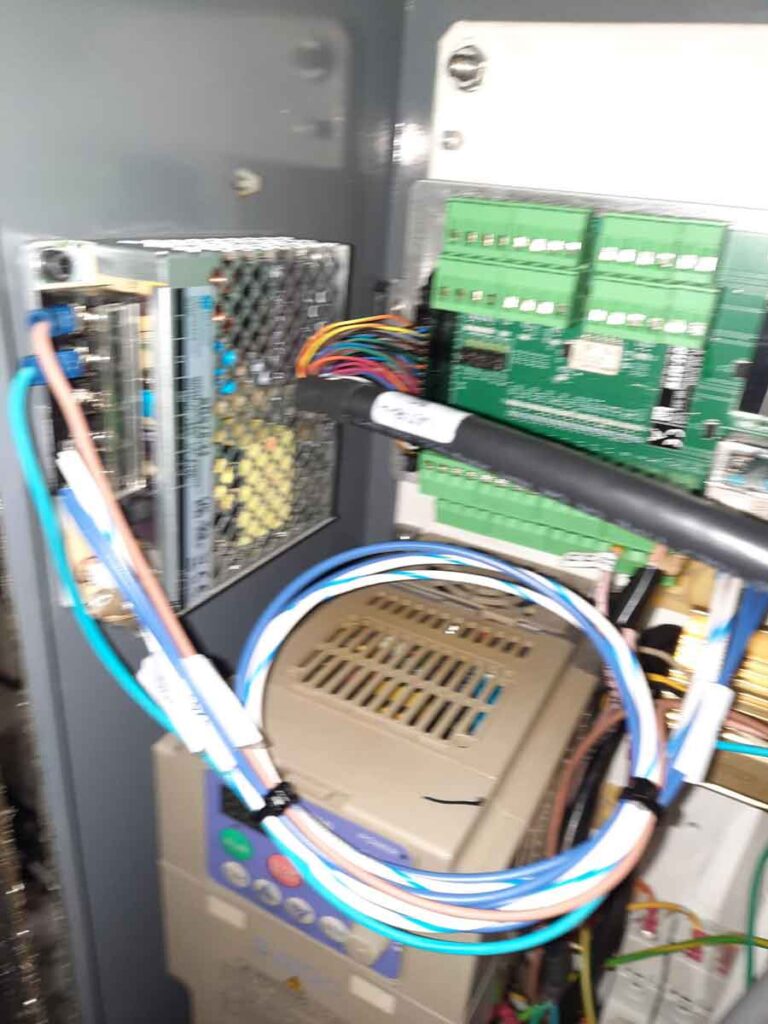

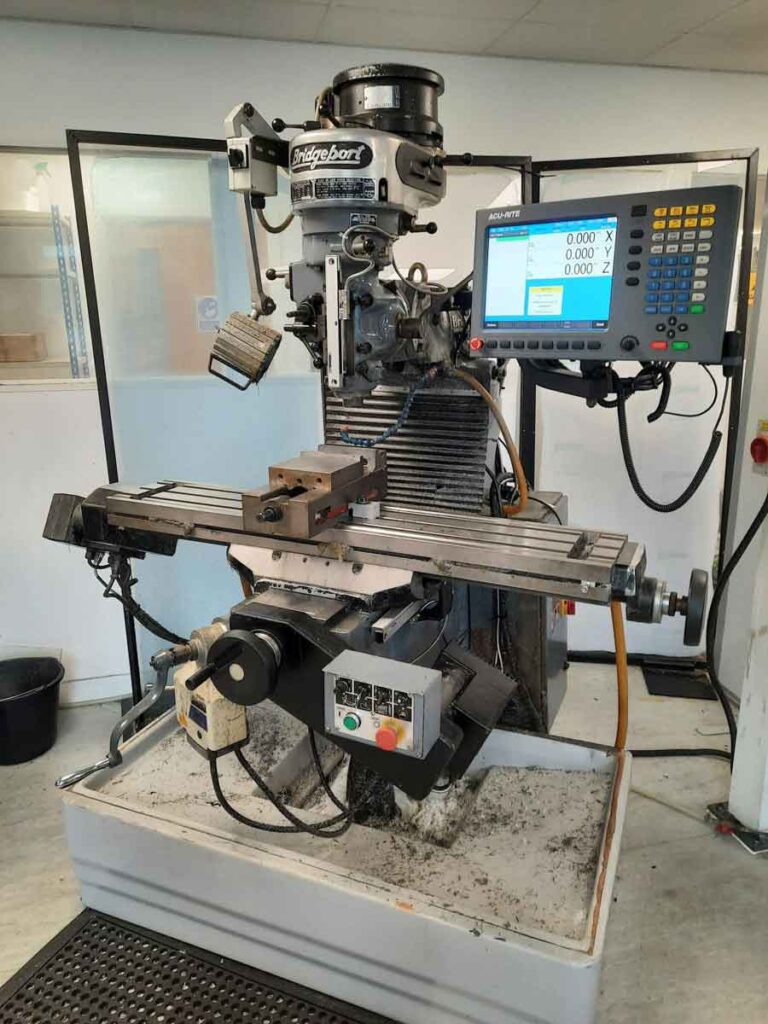

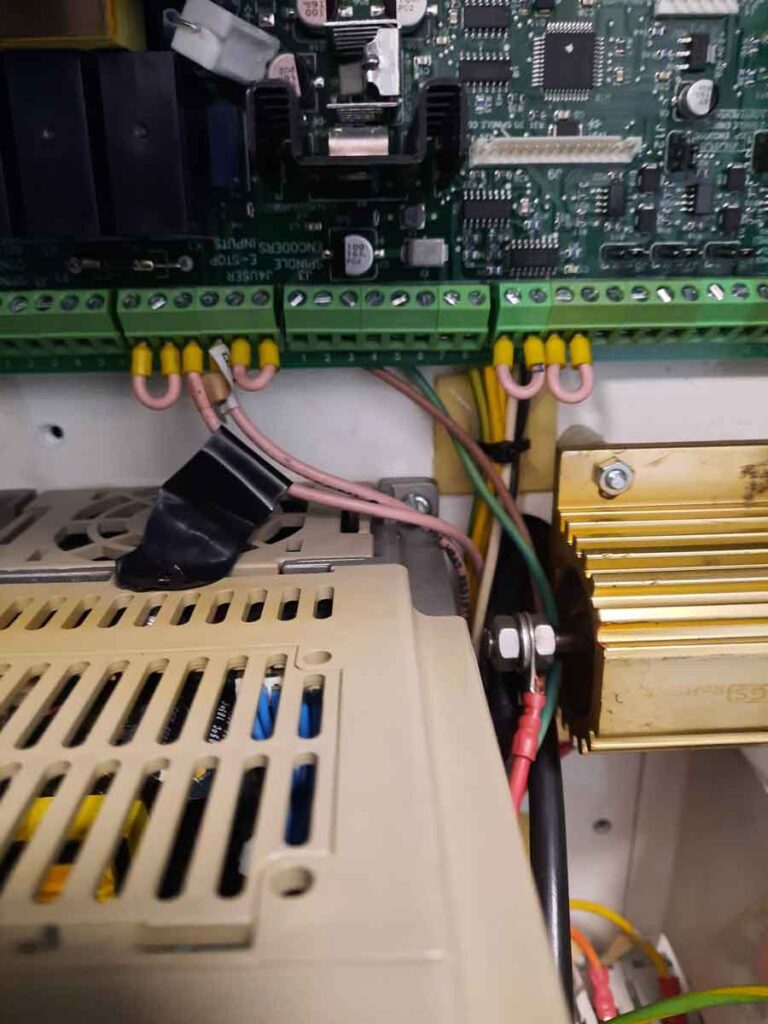

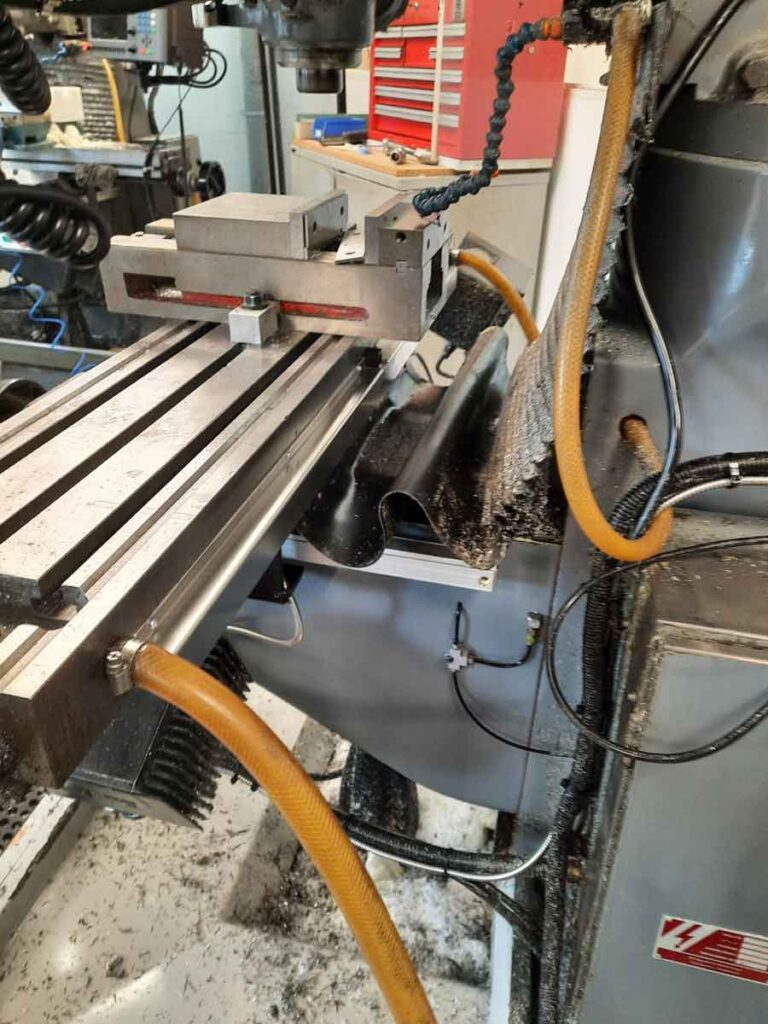

EEC carry out work to upgrade obsolete machine tools. In this case, we removed an old obsolete Acu-Rite Millpwr 2 control with scales, and replaced it with the new Acu-Rite G2 control with 0.001mm resolution scales.

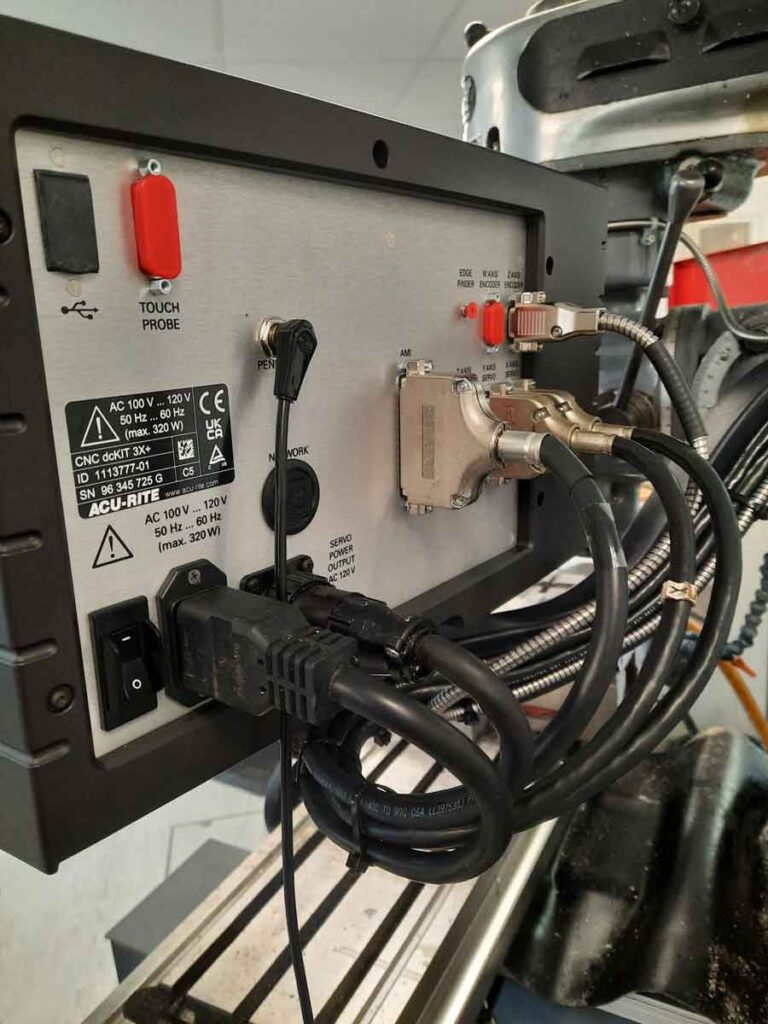

The MILLPWR^G2 control

Powerful yet easy to operate CNC retrofit systems for knee mills and bed mills. Faster set-ups, shorter run times and a major boost in productivity are just one “powerful easy” retrofit away. Our new MILLPWR^G2 control and retrofit kits can turn just about any knee mill into a powerhouse money-maker.

USB + Ethernet compatible
Simplified navigation that eliminates multiple menu screens
Upgrades available for all legacy MILLPWR^G2 models
12.1″ high resolution display with 3D graphics
1.4 GHz processor
Available offline software
Estimated runtime feature
Expanded tool / datum offsets

MILLPWR^G2Specifications

	MILLPWR^G2®	MILLPWR
External Storage	USB / Ethernet	Floppy / Compact Flash Remote Storage (RS-232)
Internal Storage	2.5 GB Flash (User)	512 MB Flash (Code & User)
Processor	1.4 GHz Celeron® M	STPC 100
Display	12.1″ 1024 x 768	10.4″ 640 x 480
Windows Off-Line Programing Station	✓
Program Preview	✓ (Listed & Graphic)
Filename Filter Search	✓
File Manager Navigation	Tree	Menu & Sub-menus
Estimated Machining Time	✓
Auto Save (Program)	✓
Program Size Limit	9,999 Steps	999 Steps
G Code Program	✓ Extended Support Plus G80 Series Drill Cycles	✓ (No Edit Capability)
Block Form Solid Model 3D Graphics	✓ (w/ User Override)
Program Step Navigation	Hard Keys & Pop-up Menu	Hard Keys & Soft Key Paging
Custom Pocket & Islands	✓ (Ramp Feed & Optimized Path)	✓ (Plunge Feed)
Circle (Pocket, Frame, Ring, Helix)	✓ (Ramp Feed)	✓ (Plunge Feed)
Tool Library	✓ (Specify by Tool Number)	✓
Multiple Datum’s (Fixture Offsets)	99
Graphic View	Line / 3D Shaded	2D
Error Compensation	Linear & Bidirectional Non-linear	Linear
