Professional Digital Readout (DRO) Display Conversions
HEIDENHAIN ND7013 DRO Display Fitted To An EMCO lathe
EEC Ltd were commissioned to fit a replacement HEIDENHAIN ND7013 Digital Readout (DRO) display to an EMCO lathe, replacing a defective factory-fitted option which the customer was having major issues with. Using genuine signal and cable adapters the HEIDENHAIN ND7013 DRO is a plug and play option requiring minor parameter changes in order to dovetail flawlessly with existing scale and axis encoders.
The image below shows the Replacement HEIDENHAIN ND7013 digital readout display fitted to the EMCO lathe, with the use of a high quality display arm mounted in a traditional position.
HEIDENHAIN ND7013 digital readout display fitted to an EMCO lathe

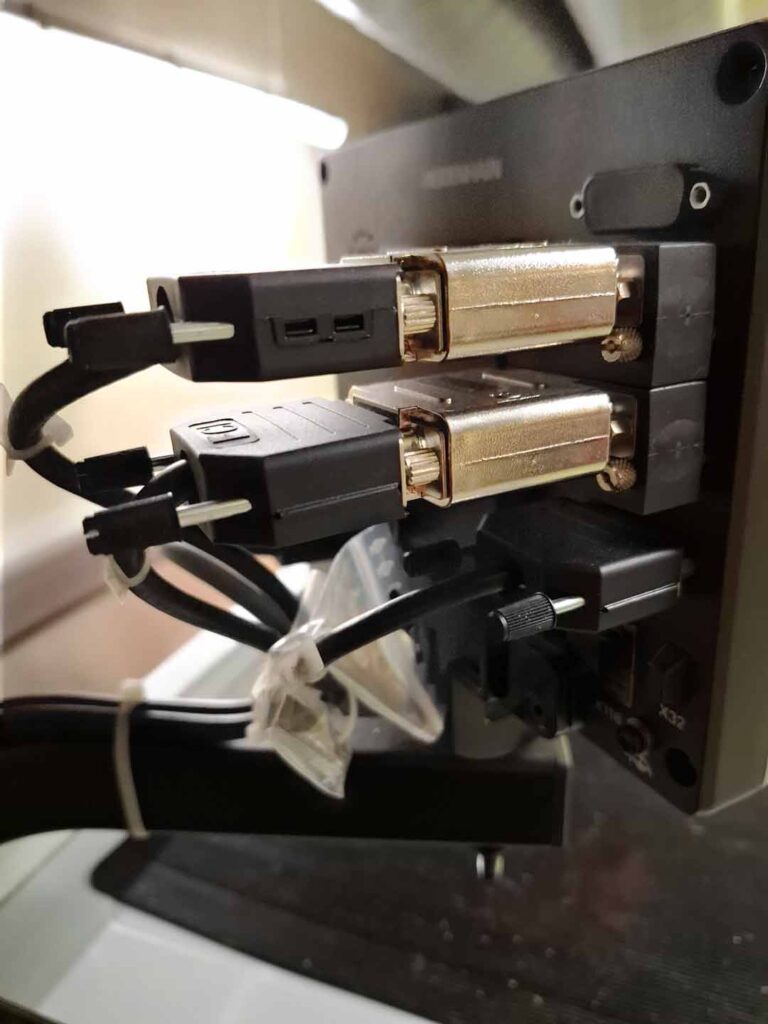

The second image illustrates gender and signal adapters enabling the existing scales and encoders fitted to the EMCO lathe, to work with the HEIDENHAIN ND7013 DRO display seamlessly.
Adapters are often required to fit contemporary Digital Readout Displays to legacy machines and lathes

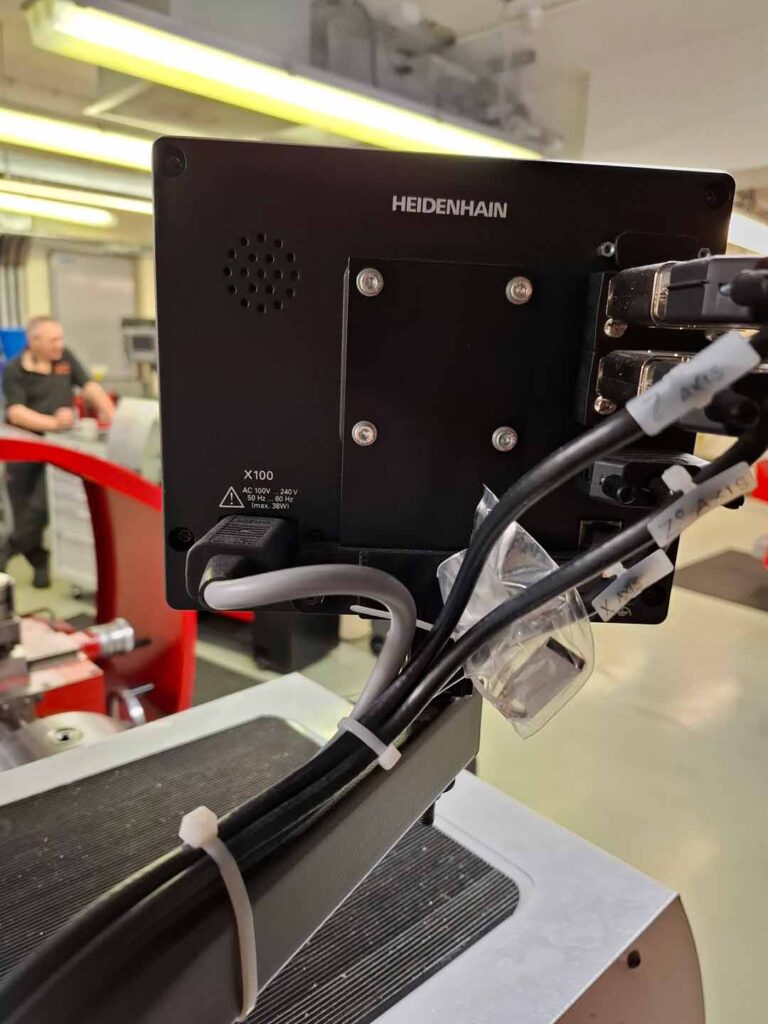

Professional DRO conversions consider longevity of installation and future proofing. In this case correct cable management is implemented to limit the chances of damage and future failures – as presented below.
Properly thought out cable management is a must for longevity of installation
The convenient digital readout for milling, drilling, boring machines, and lathes
The HEIDENHAIN ND 7013 digital readouts are suited for use on manual milling, drilling, and boring machines as well as lathes with up to three axes. Integrated switching inputs and outputs enable interaction with the machine. This makes it possible to perform simple tasks in automation.
The HEIDENHAIN ND 7013 digital readouts have been conceived for harsh workshop conditions. They feature a sturdy aluminium housing with touchscreen operation. With its clearly organized and user-friendly user interface, operation of the HEIDENHAIN ND 7013 is very simple. The 7-inch TFT monitor displays all the information you need to machine your workpieces. Its low-profile aluminium housing with integrated power pack and fan-less passive cooling is extremely sturdy and tolerant to negative influences. The unit’s intuitive touchscreen made of specially hardened glass can even be operated with gloves.
